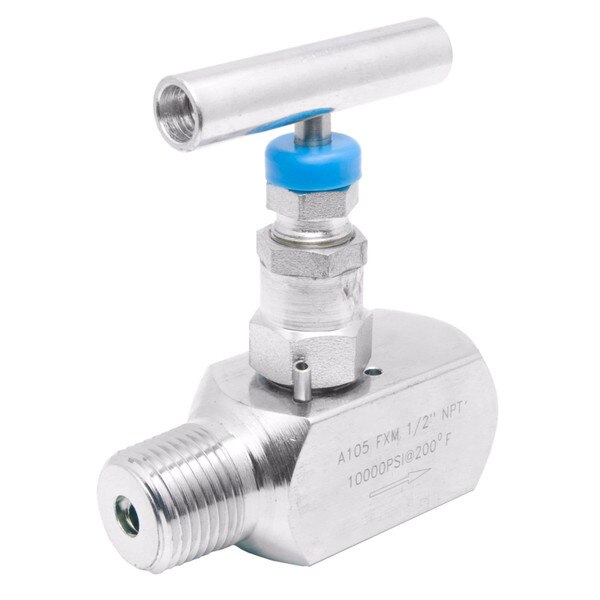

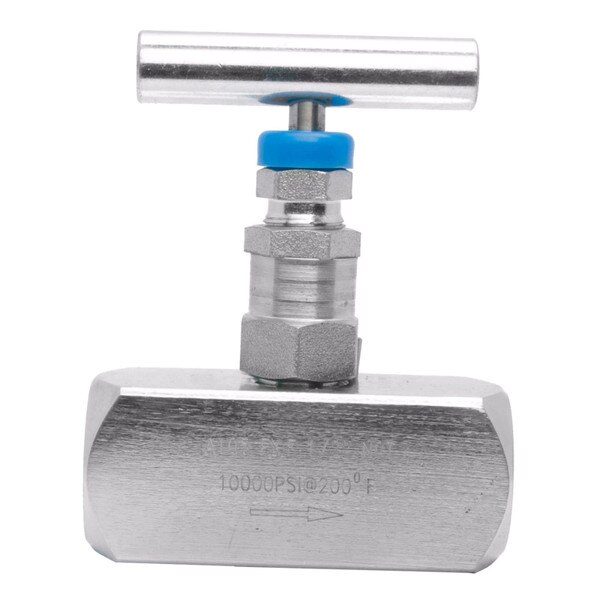

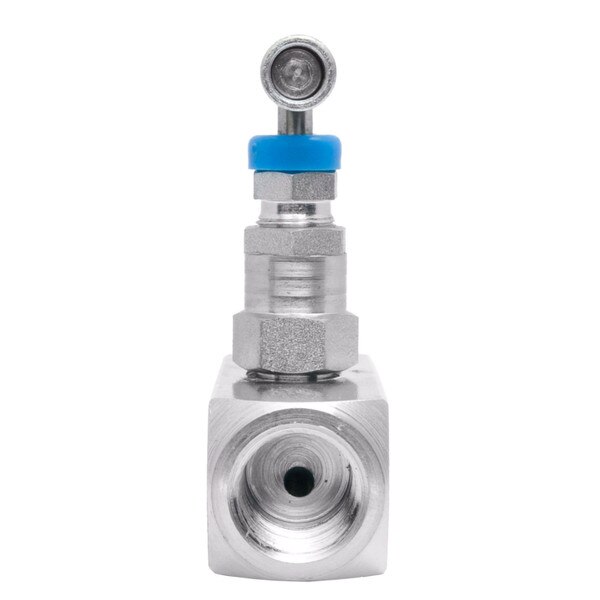

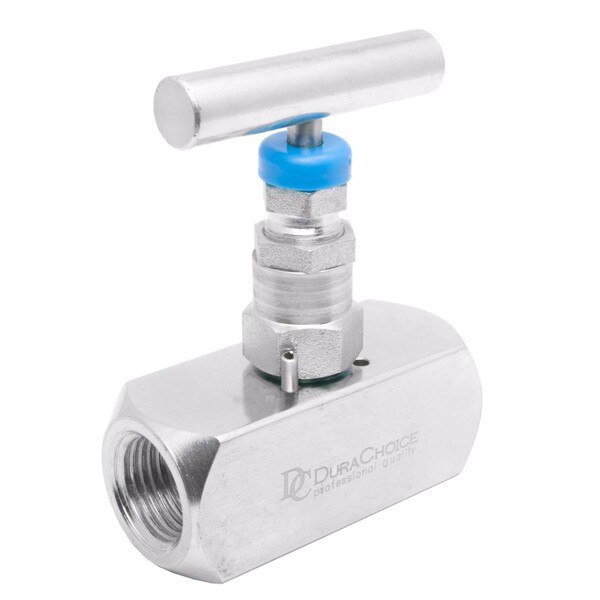

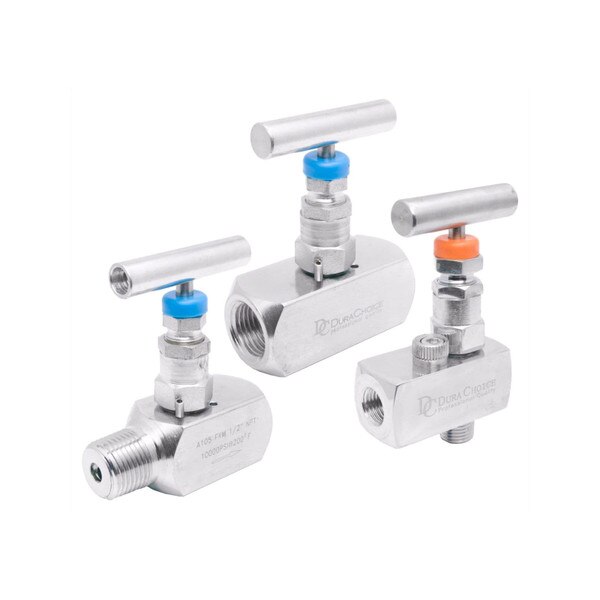

Carbon Steel (316) Needle Valves - 10,000 PSI
Manufacturer: DuraChoice
Size from 1/4" to 1", Working Pressure 10,000 psi, ISO 9001 Manufacturer
10,000 PSI at -65 to 100F
Bubble-tight metal-to-metal seat for positive shut off
2 piece non-rotating hardened (17 -4PH) tip for first time seal and long service life
Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing
Metal-to-metal body bonnet seal for high pressure and high temperature sealing
Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration
Backing sealing stem to extend packing life
NPT threaded
100% Hydrostatic testing
Carbon Steel (316) Needle Valves - 10,000 PSI
Manufacturer: DuraChoice
DESCRIPTION
- Bubble-tight metal-to-metal seat for positive shut off
- 2 piece non-rotating hardened (17-4PH) tip for first time seal and long service life
- Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing
- Metal-to-metal body bonnet seal for high pressure and high temperature sealing
- Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration
- Backing sealing stem to extend packing life
- NPT threaded
- 100% Hydrostatic testing
Description | Material |
Body | CS A105 |
Bonnet | SS 316 |
Stem | SS 316 |
Stem Tip | SS 316 |
Packing Washer | SS 316 |
Lock Nut | SS 304 |
Gland | SS 304 |
Lock Pin | SS 304 |
Handle | Stainless Steel |
Set Screw | Stainless Steel |
Packing | PTFE |
Dust Cap | Nylon |
