Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Lower Mount Connection, 0-3,000 **Color compact face**
SKU: DCK03CPMT
Manufacturer: DuraChoice
Trash/Waste Truck Color-Coded Liquid Filled Pressure Gauge
Features
- Made for Waste Management
- 3,000 PSI (WOG)
- Dial Size: 2-1/2" or 4" Dial Sizes (Crimped Casing)
- Accuracy: +/- 3/2/3%
- Scale: Dual Scale - PSI/Bar
- Movement: Copper Alloy*
- Bourdon Tube: Copper Alloy*
- Window: Poly-carbonate
- Case: Stainless Steel case for protection in harsh environments
- Connection: Copper Alloy Lower Mount*; 1/4" NPT for 2-1/2" & 4" dials
Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Lower Mount Connection, 0-3,000 **Color compact face**
SKU: DCK03CPMT
Manufacturer: DuraChoice
DESCRIPTION

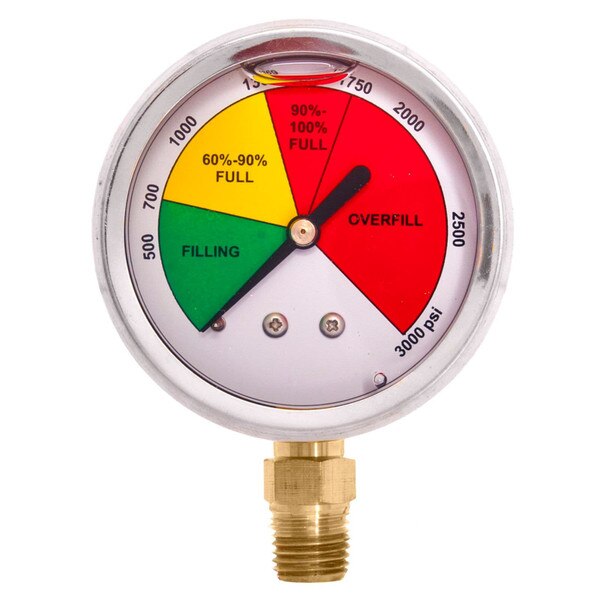

This DuraChoice gauge is specifically designed for industrial grade waste trucks. Color on the dial indicates when truck is getting full or overfilled. Available in 2 1/2" and 4" sized dial. 1-Year Warranty. The dial on these DuraChoice liquid filled pressure gauges is readable from a considerable distance. The stainless steel case protects against harsh environments and the glycerin filling promotes longer service life because it helps dampen vibration and pulsation. The glycerin also discourages condensation from forming and obscuring the readout.
Features
- Dial Size: 2-1/2" or 4" Dial Sizes (Crimped Casing)
- Accuracy: +/- 3/2/3%
- Scale: Dual Scale - PSI/Bar
- Movement: Copper Alloy*
- Bourdon Tube: Copper Alloy*
- Window: Poly-carbonate
- Case: Stainless Steel case for protection in harsh environments
- Connection: Copper Alloy Lower Mount*; 1/4" NPT for 2-1/2" & 4" dials
California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
