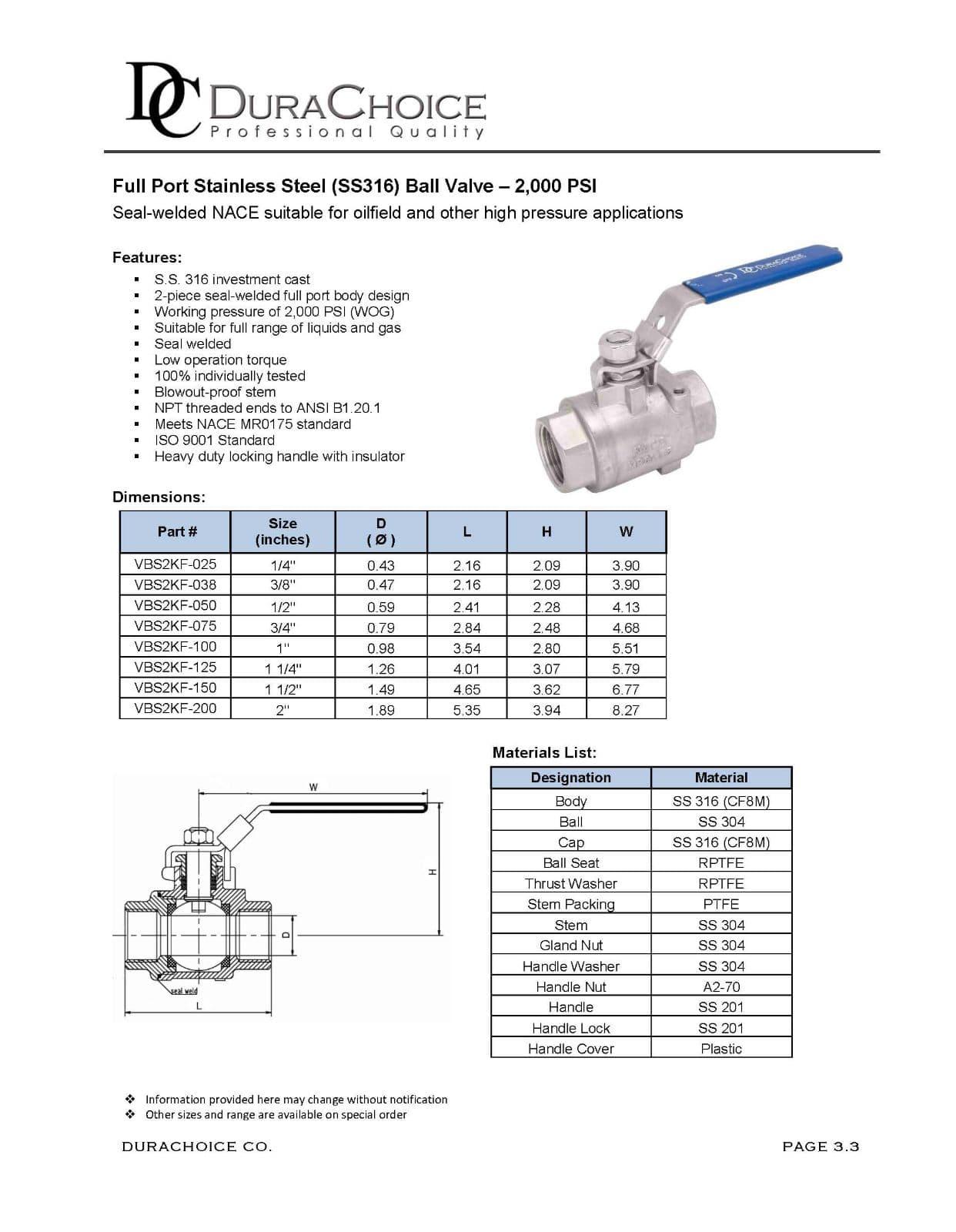

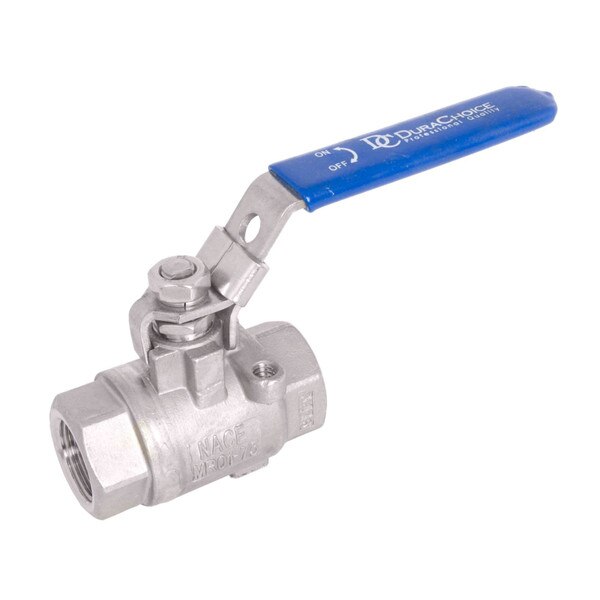

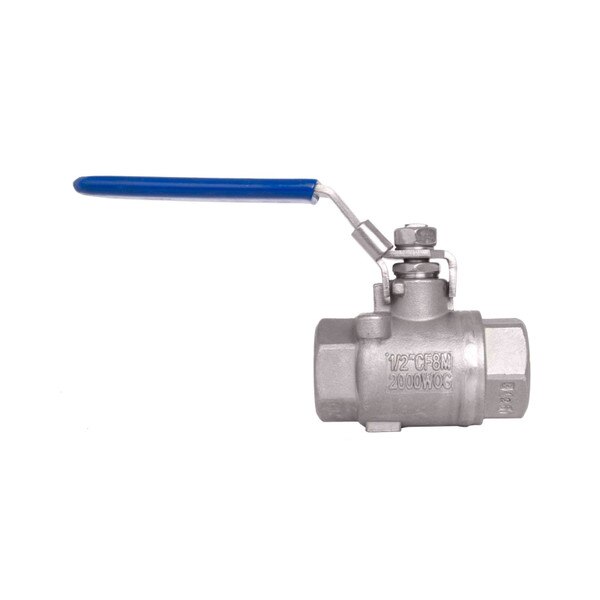

2,000 PSI Stainless Steel (316) Ball Valve, Full Port, Seal Welded for High Pressure, NACE
SKU: VBS2KF
Manufacturer: DuraChoice
High Pressure Stainless Steel 316 (CF8M) Seal Welded Full Port Ball Valve, NACE, RPTFE, Oilfield - 2,000 PSI (WOG) FxF NPT
• S.S. 316 investment cast
• 2-piece seal-welded full port body design
• Working pressure of 2,000 PSI (WOG)
• Suitable for full range of liquids and gas
• Seal-welded
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• NPT threaded ends to ANSI B1.20.1
• Meets NACE MR0175 standard
• ISO 9001 Standard
• Heavy duty locking handle with insulator
2,000 PSI Stainless Steel (316) Ball Valve, Full Port, Seal Welded for High Pressure, NACE
SKU: VBS2KF
Manufacturer: DuraChoice
DESCRIPTION
Designed for petroleum and natural gas production, the VBS2KF line of high pressure valves is pressure rated at 2,000 PSI (WOG), and formulated to resist the corrosion that can plague other ball valves in oilfield or refinery conditions. The valve is seal-welded for additional strength.
Features:
SS 316 investment cast
2-piece seal-welded full port body design
Working pressure of 2,000 PSI (WOG)
Suitable for full range of liquids and gas
Seal-welded
Low operation torque
100% individually tested
Blowout-proof stem
NPT threaded ends to ANSI B1.20,1
Meets NACE MR0175 standard
ISO 9001 Standard
Heavy duty locking handle with insulator
Materials List
Body - SS 316 (CF8M)
ball - SS 304
Cap - SS 316 (CF8M)
Ball Seat - RPTFE
Thrust Washer - RPTFE
Stem Packing - PTFE
Stem - SS 304
Gland Nut - SS 304
Handle Washer - SS 304
Handle Nut - A2-70
Handle - SS 201
Handle Lock - SS 201
Handle Cover - Plastic
